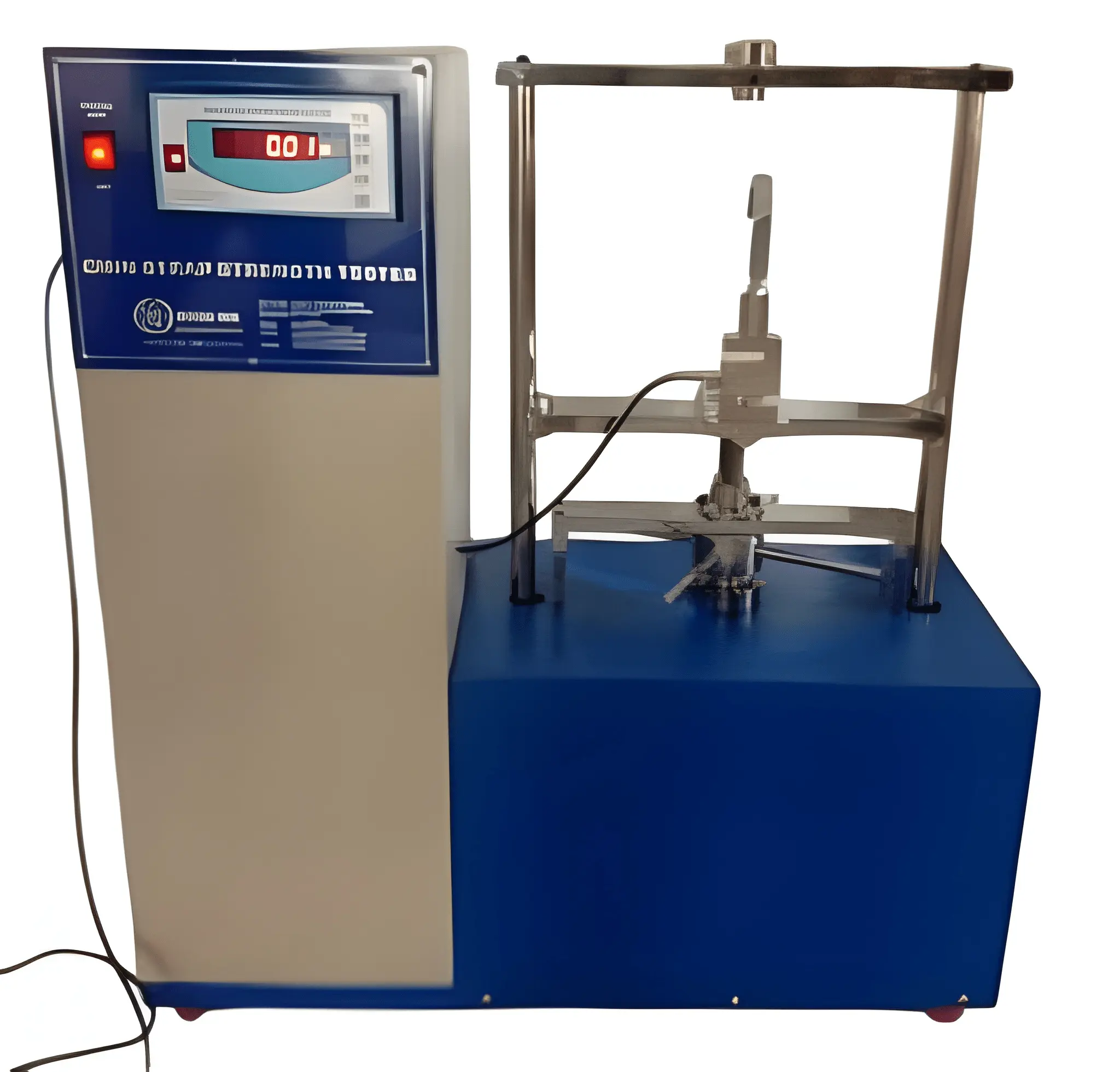

RETENTION OF CHIN STRAP TEST APPARATUS

 Helmets shall consist of a rigid platform on which the appropriate head-form for the helmet under test can be fixed. A chin-piece corresponding to the body structure of the chin shall be fixed vertically below the head-form such that the chin-strap can be fastened over it. The other end of the chin-piece shall be connected to a spring balance through a chain. The spring balance shall be mounted on a moveable base, which can be moved manually by rotating a handle, which moves a screw to apply tension on the chain-straps.

Description

Technical Specifications

Specification Details
Model No. GTX-H4R1
Shape of Chin Piece Two metal rollers of 12.50 ± 0.5 mm diameter, spaced 76 ± 0.5 mm from each other
Pre-Load on Chin Straps 25 kg
Total Load on Chin Straps 50 kg

Relevant Standards

Standard Description
IS 2745 : 1983 Specification for Non-Metal Helmets for Firemen and Civil Defence Personnel
IS 2925 : 1984 Specification for Industrial Safety Helmets
IS 9562 : 1980 Specification for Non-Metal Helmets for Police Force
