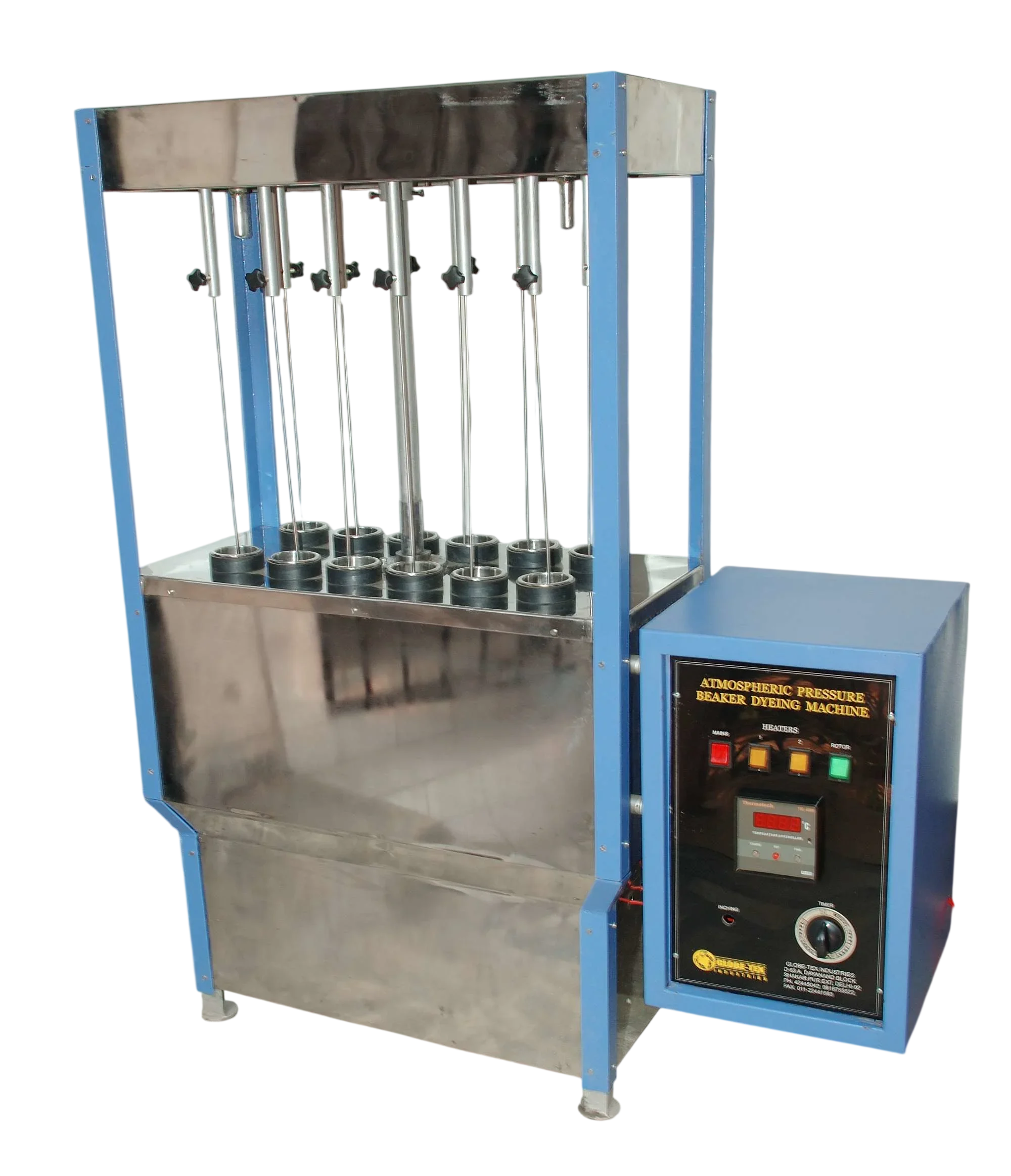

ATMOSPHERIC PRESSURE BEAKER DYEING MACHINE
| Complete in S.S. body with 12 pots x 250/500 ml along with digital temperature indicator cum controller and mechanical stirrer to maintain uniform temperature of the water inside the bath. |
Chat on WhatsApp
Description
Atmospheric Pressure Beaker Dyeing Machine
The Atmospheric Pressure Beaker Dyeing Machine is designed for laboratory dyeing applications where textile samples need to be dyed under controlled temperature conditions. The machine is available in two configurations, GTX-AB1 Standard Model and GTX-AB2 Rotating Type Model, allowing users to select the configuration according to their laboratory dyeing requirements.
The equipment can operate at a maximum temperature of 100°C and is suitable for laboratory-scale dyeing trials. Depending on the model, it is available with different beaker capacities and configurations for testing multiple samples.
Available Models
- GTX-AB1 – Atmospheric Pressure Beaker Dyeing Machine
- GTX-AB2 – Atmospheric Pressure Beaker Dyeing Machine – Rotating Type
Key Features
- Suitable for laboratory dyeing applications
- Available in standard and rotating-type configurations
- Maximum operating temperature of 100°C
- Multiple beaker positions for simultaneous sample testing
- Beaker capacities of 250 ml and 500 ml, depending on model
- 40 mm stroke length of bar
- 3 kW electrical load
- Single-phase electrical supply
- Suitable for laboratory-scale textile dyeing trials
Atmospheric Pressure Beaker Dyeing Machine Series
Available Models:
GTX-AB1 (Atmospheric Pressure Beaker Dyeing Machine) &
GTX-AB2 (Atmospheric Pressure Beaker Dyeing Machine – Rotating Type)
| Specification | GTX-AB1 | GTX-AB2 |
|---|---|---|
| Operating Type | Standard Model | Rotating Type Model |
| Beaker Configuration | 12 Pot × 250 ml or 500 ml | 12 Pot × 500 ml |
| Electric Load | 3 KW | 3 KW |
| Stroke Length of Bar | 40 mm | 40 mm |
| Maximum Temperature | 100°C | 100°C |
| Electric Supply | 230 Volt AC, Single Phase | 230 Volt AC, Single Phase |
GTX-AB1 Standard Model
The GTX-AB1 is the standard configuration of the series and provides 12 pot positions with 250 ml or 500 ml beaker options. It is designed for laboratory dyeing trials where multiple textile samples can be processed using the available pot configuration.
The model operates with a maximum temperature of 100°C and has a 40 mm stroke length of bar. It requires a 230 Volt AC, single-phase electrical supply and has a total electrical load of 3 kW.
GTX-AB2 Rotating Type Model
The GTX-AB2 is the rotating-type configuration of the Atmospheric Pressure Beaker Dyeing Machine series. It provides 12 pots with 500 ml beakers and operates at a maximum temperature of 100°C.
Like the GTX-AB1, this model has a 40 mm stroke length, a 3 kW electric load, and operates on 230 Volt AC, single phase supply.
Laboratory Dyeing Applications
The machine is intended for laboratory-scale dyeing work where textile samples require controlled dyeing conditions. Its multiple pot configuration allows several samples to be handled during laboratory trials.
The available beaker capacities provide flexibility for different sample and liquor requirements. The rotating configuration is available through the GTX-AB2 model for applications where this type of operation is required.
Benefits of the Beaker Dyeing System
The series provides two different machine configurations for laboratory dyeing applications. Users can select the standard GTX-AB1 or rotating GTX-AB2 model based on their testing requirements.
With a maximum temperature of 100°C, multiple beaker positions, and single-phase operation, the machine is suitable for textile laboratories and other facilities carrying out laboratory-scale dyeing trials.
For related textile laboratory testing applications, explore our Textile Testing Equipment range.
https://globetexindustries.com/product-category/fabric-testing-equipments/
Frequently Asked Questions
What is an Atmospheric Pressure Beaker Dyeing Machine?
It is a laboratory dyeing machine designed for carrying out textile dyeing trials using multiple beaker positions under controlled temperature conditions.
What is the maximum temperature of the machine?
Both GTX-AB1 and GTX-AB2 have a maximum temperature of 100°C.
How many beakers can be used at one time?
Both models have 12 pot positions. The GTX-AB1 supports 250 ml or 500 ml beaker configurations, while the GTX-AB2 is available with 12 × 500 ml beakers.
What is the difference between GTX-AB1 and GTX-AB2?
The GTX-AB1 is the standard model, while the GTX-AB2 is the rotating-type model. Their beaker configurations also differ.
What is the electrical requirement?
Both models operate on 230 Volt AC, single phase supply and have an electrical load of 3 kW.
What is the stroke length of the bar?
The stroke length of the bar is 40 mm for both models.
Is it suitable for laboratory dyeing trials?
Yes. The machine is designed for laboratory-scale dyeing applications where textile samples are tested under controlled conditions.
