Laboratory Padding Mangle – GTX-PH Series
The Laboratory Padding Mangle – GTX-PH Series is available in three models: GTX-PH2 (Vertical), GTX-PH4 (With Heating Chamber) and GTX-PH6 (Horizontal). The series provides different configurations for laboratory padding and pad-dry applications.
All models have a working width of 450 mm. The GTX-PH2 is a vertical laboratory padding mangle with a synthetic rubber coated roller, while the GTX-PH4 combines a padding mangle with an integrated heating chamber. The GTX-PH6 is a horizontal pneumatic padding mangle with synthetic rubber rollers and pneumatic operation.
Chat on WhatsApp
Description
Laboratory Padding Mangle – GTX-PH Series
The Laboratory Padding Mangle – GTX-PH Series is available in three models: GTX-PH2 (Vertical), GTX-PH4 (With Heating Chamber) and GTX-PH6 (Horizontal). The series provides different configurations for laboratory padding and pad-dry applications.
All models have a working width of 450 mm. The GTX-PH2 is a vertical laboratory padding mangle with a synthetic rubber coated roller, while the GTX-PH4 combines a padding mangle with an integrated heating chamber. The GTX-PH6 is a horizontal pneumatic padding mangle with synthetic rubber rollers and pneumatic operation.
Features of Laboratory Padding Mangle
- Available in vertical, heating chamber and horizontal pneumatic configurations.
- 450 mm working width across the GTX-PH series.
- GTX-PH2 features a 120 mm Dia. × 500 mm Length roller/bowl.
- GTX-PH2 has synthetic rubber roller coating with 70–75 Shore rubber hardness.
- GTX-PH2 provides variable speed up to 10 mtrs/min.
- GTX-PH4 is equipped with an integrated heating chamber for Pad-Dry Applications.
- GTX-PH4 has electrical heaters available in 8, 16 & 24 kW.
- Maximum temperature of GTX-PH4 is 250°C (±5°C).
- GTX-PH4 provides a dwell time of 45 Seconds to 5 Minutes.
- GTX-PH4 has a 1750 mm heating chamber length.
- GTX-PH4 uses a TC04 Digital Temperature Indicator Controller.
- GTX-PH6 uses synthetic rubber rollers with 65–70 Shore rubber hardness.
- GTX-PH6 provides pneumatic operation with standard pneumatic fittings and cylinders.
- GTX-PH6 is fitted with a D.C. Motor, ¼ H.P., 65 RPM Gear Motor.
- GTX-PH2 includes a digital tachometer, safety protector and emergency stop.
Laboratory Padding Mangle Series
Available Models:
GTX-PH2 (Vertical),
GTX-PH4 (With Heating Chamber) &
GTX-PH6 (Horizontal)
| Specification | GTX-PH2 | GTX-PH4 | GTX-PH6 |
|---|---|---|---|
| Type | Laboratory Padding Mangle (Vertical) | Padding Mangle with Heating Chamber | Laboratory Padding Mangle (Horizontal Pneumatic) |
| Working Width | 450 mm | 450 mm | 450 mm |
| Roller / Bowl Size | 120 mm Dia. × 500 mm Length | N/A | Synthetic Rubber Rollers |
| Roller Coating | Synthetic Rubber | N/A | Synthetic Rubber |
| Rubber Hardness | 70–75 Shore | N/A | 65–70 Shore |
| Variable Speed | Up to 10 mtrs/min | N/A | 10 mtrs/min |
| Heating System | N/A | Electrical Heaters (8, 16 & 24 kW) | N/A |
| Maximum Temperature | N/A | 250°C (±5°C) | N/A |
| Dwell Time | N/A | 45 Seconds to 5 Minutes | N/A |
| Heating Chamber Length | N/A | 1750 mm | N/A |
| Temperature Control | N/A | TC04 Digital Temperature Indicator Controller | N/A |
| Motor | N/A | N/A | D.C. Motor, ¼ H.P., 65 RPM Gear Motor |
| Liquor Trough Capacity | Approx. 900 ml | N/A | N/A |
| Electrical Supply | 230 VAC, Single Phase | 415 V, Three Phase, 40 Amp | N/A |
| Construction | MS Powder Coated Base, Chrome Plated Housing & Pillars, SS304 Trough & Control Panel | MS Painted Outer Body with High Temperature Resistant Inner Coating | Complete SS304 Construction (MS Powder Coated Base Frame) |
| Special Features | Digital Tachometer, Safety Protector, Emergency Stop, Compact Design | Integrated Heating Chamber for Pad-Dry Applications | Pneumatic Operation with Standard Pneumatic Fittings & Cylinders |

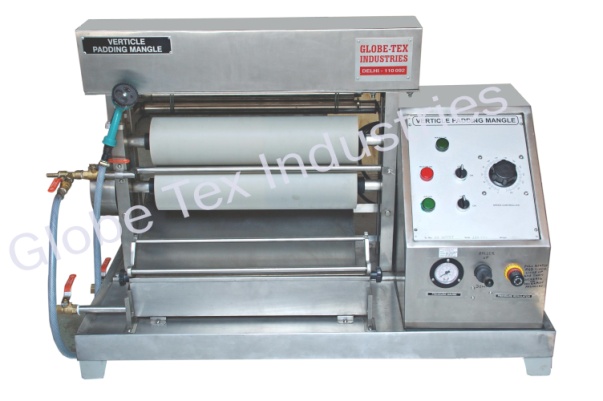

GTX-PH2 – Vertical Laboratory Padding Mangle
The GTX-PH2 is a vertical laboratory padding mangle with a 450 mm working width. It has a 120 mm Dia. × 500 mm Length roller/bowl with synthetic rubber coating and 70–75 Shore rubber hardness.
The model provides variable speed up to 10 mtrs/min and has an approximate 900 ml liquor trough capacity. Its construction includes an MS powder coated base, chrome plated housing and pillars, SS304 trough and control panel.
Special features include a digital tachometer, safety protector, emergency stop and compact design. The electrical supply is 230 VAC, Single Phase.
GTX-PH4 – Padding Mangle with Heating Chamber
The GTX-PH4 is a padding mangle with an integrated heating chamber for Pad-Dry Applications. It has a 450 mm working width and an electrical heating system with 8, 16 & 24 kW heater options.
The maximum temperature is 250°C (±5°C), with a dwell time of 45 Seconds to 5 Minutes. The heating chamber length is 1750 mm and temperature control is provided through a TC04 Digital Temperature Indicator Controller.
The construction consists of an MS painted outer body with high temperature resistant inner coating. The electrical supply is 415 V, Three Phase, 40 Amp.
GTX-PH6 – Horizontal Pneumatic Laboratory Padding Mangle
The GTX-PH6 is a horizontal pneumatic laboratory padding mangle with a 450 mm working width. It uses synthetic rubber rollers with 65–70 Shore rubber hardness and has a variable speed specification of 10 mtrs/min.
The model uses a D.C. Motor, ¼ H.P., 65 RPM Gear Motor and provides pneumatic operation with standard pneumatic fittings and cylinders.
The GTX-PH6 has Complete SS304 Construction (MS Powder Coated Base Frame).
The GTX-PH Series Laboratory Padding Mangle can be used as part of a range of Textile Testing Equipment for laboratory textile testing and processing applications. https://globetexindustries.com/product-category/fabric-testing-equipments/
Applications
The Laboratory Padding Mangle is used for laboratory padding applications where fabric or textile samples are passed through rollers for padding processes.
The GTX-PH2 is configured as a vertical laboratory padding mangle, while the GTX-PH4 combines padding operation with an integrated heating chamber for pad-dry applications. The GTX-PH6 provides a horizontal pneumatic configuration.
