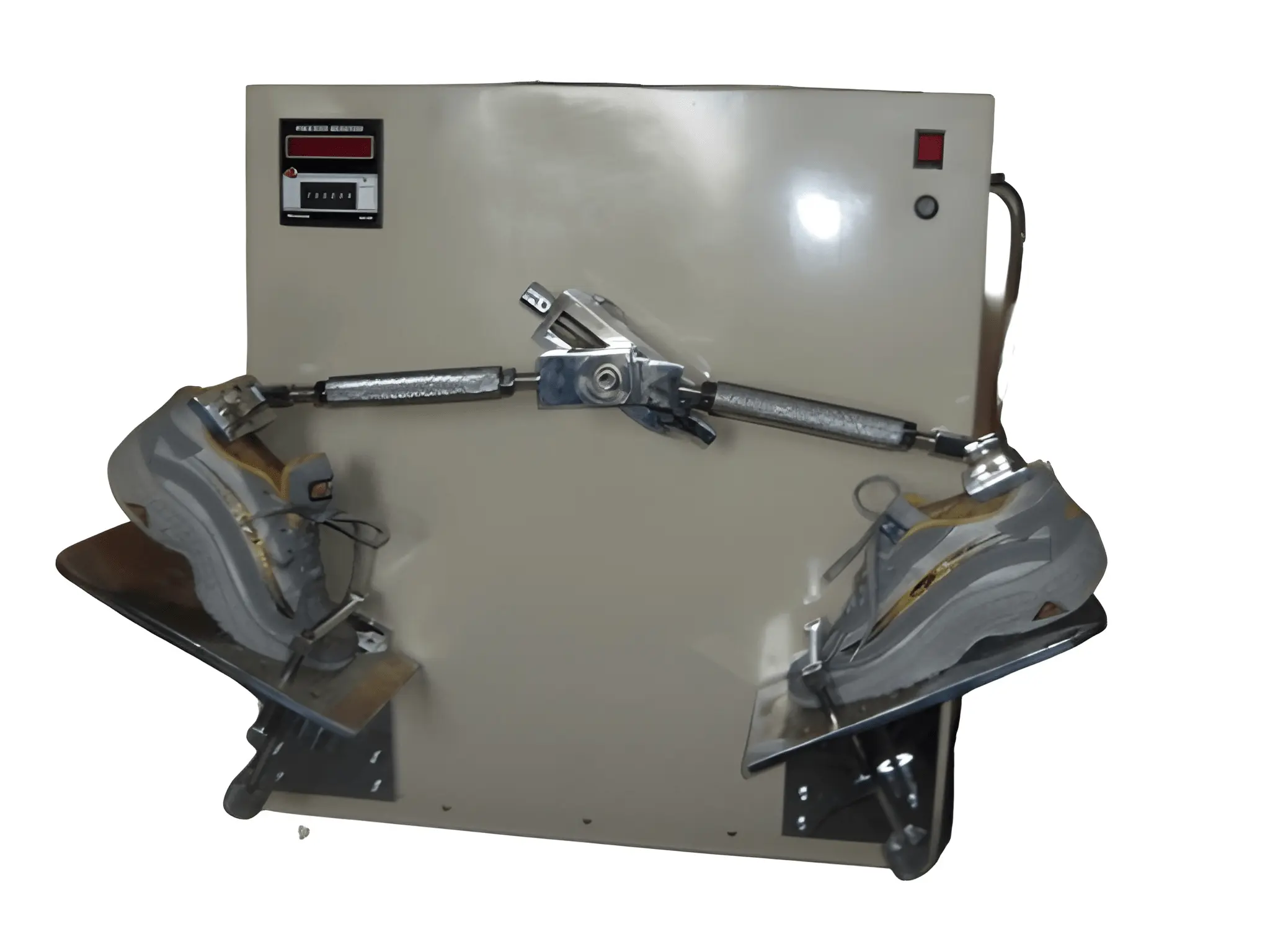

FULL SHOE FLEX TESTER
The shoe flex tester is used for determination of the ability of the full shoe to withstand the effect of flexing stresses produced on the different parts of the shoe.
The Flex Tester simulates the effect of actual walking action on the shoe. The test specimen is held rigidly at the toe portion using a suitable toe last and clamp, while the heel portion has a separate last on which the shoe is firmly tied as in actual use.
A pre-set type digital counter with key reset and memory backup is provided to record the total number of test cycles and to stop the motor automatically after pre-set number of test cycles.
Chat on WhatsApp
Description
| Specification | Details |
|---|---|
| Model No. | GTX-LB7-F |
| Flexing Frequency | 140 ± 10 Cycles/Minute |
| Maximum Angle of Flexing of Shoe | 45° |
| Number of Shoes Tested at a Time | 2 |
| Motor | ¼ HP, Single Phase, 230 Volts AC |
| Timer | Digital Timer (Range: 99.9 sec, Resolution: 0.1 sec) with Three Displays and Push Button Controls |
| Counter | Six Digit Pre-set Type Electronic Counter |
Features:
- Suitable for whole shoe flexing resistance testing.
- Tests two shoes simultaneously.
- Digital timer with three-display monitoring system.
- Six-digit preset electronic counter for accurate cycle counting.
- Heavy-duty motorized operation.
- Reliable and repeatable flexing performance evaluation.
Related Standards:
- SATRA PM92 – Resistance of Footwear to Flexing.
- IS 8085 (Part 2):1999 – Method of Test for Footwear.
- IS 15844 Clause 4.3.7.
- ISO 24266.
