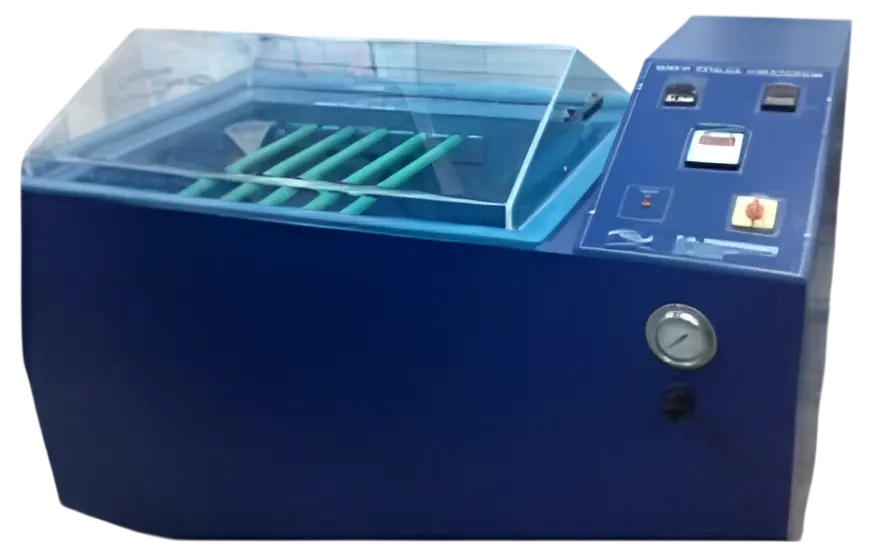

DIGITAL SALT SPRAY CHAMBER

The Salt Spray Chamber is double wall the outer body of FRP grade and inner body of S.S 316 grade duly filled with glass

Wool to avoid any kind of heat loss.

The Globe Tex Salt Spray (Fog) Tester has been designed

strictly as per ASTM B-117 standard to assess the ability of rust

Proofed components to withstand corrosion due to the atmospheric conditions.

Description

Specification	Details
Model No.	GTX-H7FN-B
Equipment Type	Digital Salt Spray Chamber
Capacity	250 Litres (Approx.)
Working Chamber Size	700 × 600 × 600 mm
Temperature Range	Ambient to 60°C
Temperature Accuracy	±1°C
Air Saturator Temperature Range	40°C to 49°C
Air Saturator Least Count	0.1°C
Fog Collection Unit	1 to 2 ml/hour fog collection rate for calibration
Display	Digital display of temperature & humidity with programmable temperature controller and PT-100 sensor
Chamber Construction	Outer Body: SS 304 Grade, Inner Chamber: SS 316 Grade with glass wool insulation and toughened glass lid
Water Reservoir Tank	Built-in pre-heated reservoir with automatic solution circulation and drainage system
Specimen Placement	Hanging rods provided for specimen placement
Instrumentation & Controller	Digital Temperature Controller Cum Indicator with corrosion-resistant RTD PT-100 Sensor
Pre-Set Timer	Digital timer with memory backup and auto cut-off, up to 999 hours
Pressure Gauge	Provided for pressure regulation and air filtration system
Safety Features	Input surge protection, Earth Point, and Over Temperature Protection
Power Supply	230 Volt AC, Single Phase, 50 Hz
Maximum Connected Load	2.5 kW (Approx.)
